Description

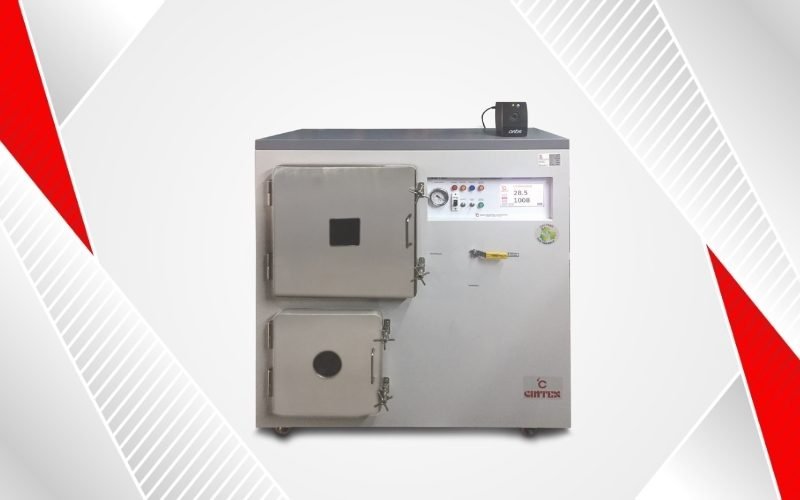

The Freeze Dryer (Lyophilizer) is a highly efficient unit designed for precise and reliable lyophilization of biological and chemical samples, ideal for serum bottles, vials, ampoules, and other small glassware. Constructed with a durable SS 304 inner chamber and a GI powder-coated exterior, it ensures long-term performance and easy maintenance. The system features a mechanical cooling condenser capable of achieving temperatures of –50°C or –80°C, along with a vacuum gauge ranging from 1” to 30” Hg for accurate pressure monitoring. Controlled by a microprocessor-based PID temperature controller with a dual digital indicator and PT-100 sensor, it delivers exceptional temperature accuracy. Available in 3 Ltr. and 6 Ltr. capacities, the lyophilizer can be configured with drum-type, vertical, or straight-type stainless steel manifolds, each equipped with quick-seal valves for secure flask attachment and maximum vapour flow. Supplied with a suitable vacuum pump, this freeze dryer is ideal for laboratories and industries requiring efficient drying, preservation, and stabilization of heat-sensitive materials.
Freeze Dryer (Lyophilizer)
- Most ideal for lyophilizing in serum bottles, vials, and ampoules or other small glassware.
- Chamber made of 304 SS and Outer made of GI sheets duly powder coated finish.
- Equipped with a mechanically cooling system for condenser temperature (-50°C or -80°C).
- Vacuum gauge reads from 1” to 30” Hg.
- The microprocessor-based PID temperature controller with dual digital indicator & PT–100 sensor.
- Selection of model with drum-type manifolds, vertical-type manifold, or straight-type manifold.
- Selection of capacity 3 Ltr., 6 Ltr., and chambers drying.
- Stainless steel manifolds are designed to provide maximum vapour flow and convenient access to all parts. Each ¾” port has a quick seal valve for attaching a variety of flasks.
- With suitable vacuum pump.
Optional
- Microprocessor-based PID temperature controller with printer output facility to record PV, SV, actual date/time, etc., with variable print time interval, 5000-line memory, and audio alarm facility in case of memory full.
- Digital vacuum gauge with printing facility.
| CAT NO. | CAPACITY | MANIFOLD | CONDENSER TEMPERATURE |
|---|---|---|---|
| CIC – 75 A | 3 Ltrs. | Drum Type with 8 Port | -50°C |
| CIC – 75 B | 6 Ltrs. | Straight vertical Type with 12 Port | -50°C |
| CIC – 75 C | 12” Dia x 12” Depth | Chamber Type | -50°C |
| CIC – 75 D | 3 Ltrs. | Drum Type with 8 Port | -80°C |
| CIC – 75 E | 6 Ltrs. | Straight vertical Type with 12 Port | -80°C |
| CIC – 75 F | 12” Dia x 12” Depth | Chamber Type | -80°C |
