The Laminar Air Flow Cabinet ensures a clean and sterile working environment, designed for applications that demand contamination-free air conditions. It is constructed in MS powder-coated finish for the Regular Model and SS 304 matt/buff finish for the GMP Model, ensuring durability and easy maintenance. The unit features a Minipleat HEPA Filter (EU-13 rating, 99.997% efficiency down to 0.3 micron) with Lydall or Hollingsworth & Vose media and polyurethane sealant, along with a Pre-filter (EU-5 rating, 95% efficiency down to 5 microns) for superior air purification. The face velocity of HEPA is adjustable between 90 ± 20 FPM, maintaining Class 100 air cleanliness as per ISO-14644 & IEST-RP-CC001.3 standards. It comes with a custom-built, dynamically and statically balanced motor blower for low vibration and noise. For visibility and safety, the cabinet includes a UV light, diffused fluorescent lighting (300 Lux), and a digital magnehelic gauge to monitor pressure drop across filters. The control panel provides individual switches for blower and lighting with a 15/5 Amp socket outlet. Additionally, complete DQ/IQ/OQ/PQ documentation and SS 304 MOC and filter test certificates are supplied during installation, ensuring performance validation and compliance.

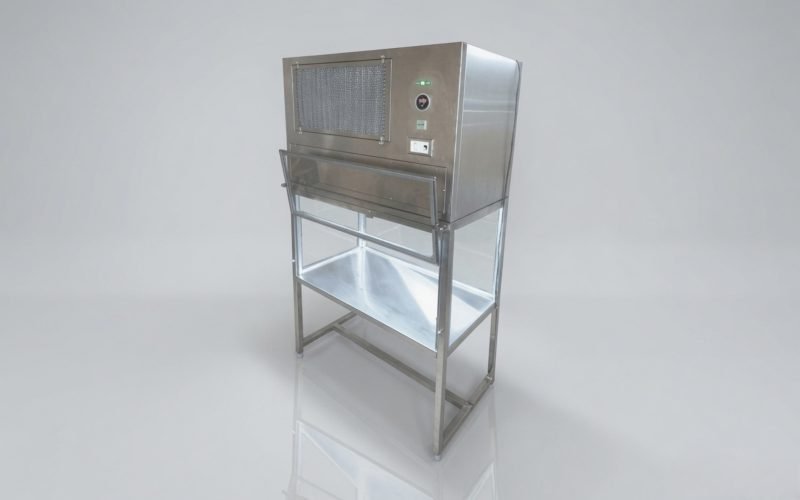

Laminar Air Flow Cabinet
M.O.C
- In MS powder coated in REGULAR MODEL.
- In SS 304 Matt/Buff finish in GMP MODEL.
Filter Details
- Minipleat HEPA Filter – EU-13 rating (99.997% down to 0.3 micron).
- Type of HEPA Filter Media: Make – M/s. Lydall / M/s. Hollingsworth & Vose
- Sealant – Polyurethane
- Pre Filter – EU-5 rating (Efficiency: 95% down to 5 micron) at working side
- Face Velocity – Adjustable from 90 ± 20 FPM
- Air Cleanliness & Filter Efficiency – Dust counts exceed Class 100 requirements as per ISO-14644 & IEST-RP-CC001.3
- Motor Blower – Custom-built drive type motor with dynamically & statically balanced blower for reduced vibration & noise.
Instrumentation & Accessories
- Lights Intensity:
- U.V Light – 1 No.
- Diffused Fluorescent Lighting providing 300 Lux white light.
- Magnehelic Gauge – Digital, Range: 0 to 25 mm (for checking pressure drop across HEPA filters)
- Electrical Switches:
- On/Off switch & indicator for Motor Blower
- On/Off switch for Light
- Additional power point included (220V, Single Phase, 50Hz, 15/5 Amps switch socket combination)
Documentation
DQ/IQ/OQ/PQ will be provided at the time of installation along with MOC Certificate of SS 304 and Filter Test Certificate.
| REFERENCE – MODEL – HORIZONTAL | ||||||
|---|---|---|---|---|---|---|
| CAT NO. | WORKING AREA | SIZE OF FILTER | HEPA FILTER | PRE FILTER | ILLUMINATION WITH UNIT | U.V. LIGHT |
| CIC – 12 A | 2’ x 2’ x 2’ | 2’ x 2’ x 3” | 1 | 1 | 1 × 20 watts | 1 × 3’ |
| CIC – 12 B | 3’ x 2’ x 2’ | 3’ x 2’ x 3” | 1 | 1 | 2 × 20 watts | 1 × 3’ |
| CIC – 12 C | 4’ x 2’ x 2’ | 4’ x 2’ x 3” | 1 | 1 | 2 × 40 watts | 1 × 3’ |
| REFERENCE – MODEL – VERTICAL | ||||||
| CAT NO. | WORKING AREA | SIZE OF FILTER | HEPA FILTER | PRE FILTER | ILLUMINATION WITH UNIT | U.V. LIGHT |
| CIC – 13 A | 2’ x 2’ x 2’ | 2’ x 2’ x 3” | 1 | 1 | 1 × 20 watts | 1 × 3’ |
| CIC – 13 B | 3’ x 2’ x 2’ | 3’ x 2’ x 3” | 1 | 1 | 2 × 20 watts | 1 × 3’ |
| CIC – 13 C | 4’ x 2’ x 2’ | 4’ x 2’ x 3” | 1 | 1 | 2 × 40 watts | 1 × 3’ |
