Description
The Stability Chamber / Humidity Chamber is specifically designed to conduct shelf-life testing, packaging evaluations, and electronic product testing under controlled environmental conditions. Built to comply with ICH, WHO, and USFDA standards, this chamber ensures reliable temperature and humidity control using a microprocessor-based PID controller with dual digital indicators. The inner chamber is made of high-quality SS 304/316 stainless steel, while the exterior is available in powder-coated or matte stainless-steel finishes for durability and hygiene. Featuring CFC-free cooling systems, steam-based humidification, and uniform air circulation, the chamber maintains stable conditions with ±1°C temperature and ±3% RH accuracy. Ideal for pharmaceutical, food, and cosmetic applications, Cintex’s Stability Chambers and Humidity Chambers deliver superior performance, precision, and compliance for long-term product testing.

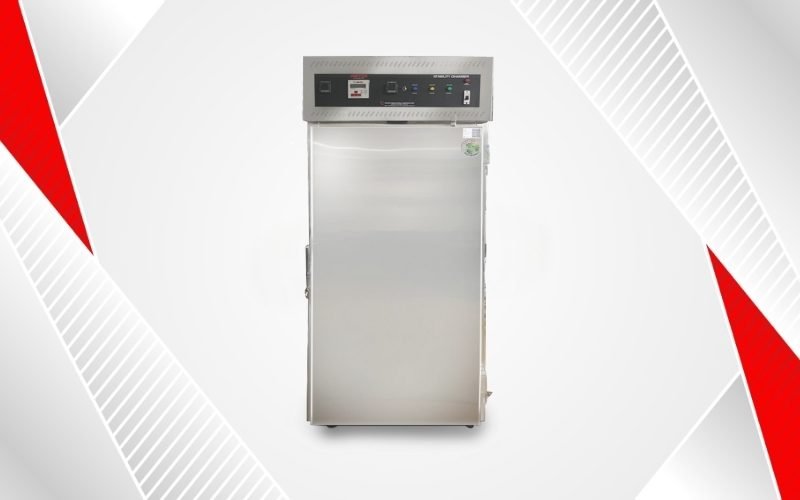

Stability Chamber / Humidity Chamber
- Designed for testing product shelf-life, packaging, and electronic tests.
- Specially designed to meet ICH, WHO, and USFDA requirements.
- Double-walled construction with Inner SS 304 chamber and exterior finished in powder-coated shade in Regular Model.
- Inner SS 304/SS 316 and exterior SS 304 matt/buff finish in GMP Model.
- Temperature and humidity controlled by microprocessor-based PID temperature and RH% controller with dual digital indicator, PT-100 sensor for temperature, and imported sensor for RH%.
- Cooling kit is CFC-free, including hermetically sealed compressor, condenser, and fan motor, safely placed below or above the chamber.
- Humidification through steam injection system, maintaining humidity levels from 40% RH to 95% RH depending on temperature (lower temperature = lower humidity, higher temperature = higher humidity). Humidity stability: ±2% RH to ±3% RH.
- Air circulation system ensures stability of conditions and even distribution inside the chamber.
- Boiler tank with water heater having auto cut-off facility and audio alarm for low water level.
- Reservoir water tank with float valve provided for continuous water supply.
- Overload protection relay and time delay provided for compressor safety.
- Adjustable SS rod-type shelves provided as standard in all units.
- Two-pane glass window on the door for clear observation of tests, with an ancillary heater between the glass to prevent condensation.
- Illumination provided through fluorescent tubes for clear visibility of tests.
Optional
- Printer output facility to record PV, SV, actual date/time with variable print time intervals, 5000-line memory, and audio alarm in case of memory full.
- Temperature scanner (4-channel / 8-channel) with printer output facility to record temperature and RH at various points inside the chamber.
- PLC-based touch screen control system with printer output facility.
- Automatic changeover to standby cooling system for uninterrupted operation.
- GSM mobile alert system for remote monitoring and notifications.
- 21 CFR Part 11 compliance software for efficient data management.
- Alarm hooter facility for immediate alert in case of system warnings.
| Cat No. | Inner Size (W × D × Ht.) | Temp. Range | RH Range | Shelves | Capacity | |
|---|---|---|---|---|---|---|
| Ltrs | CFT | |||||
| CIC – 64 | 18” × 18” × 28” | 10°C – 60°C | 40% – 95% | 2 | 150 Ltrs | 5.25 CFT |
| CIC – 64 | 24” × 24” × 24” | 10°C – 60°C | 40% – 95% | 3 | 228 Ltrs | 8 CFT |
| CIC – 64 | 24” × 24” × 36” | 10°C – 60°C | 40% – 95% | 3 | 342 Ltrs | 12 CFT |
| CIC – 64 | 26” × 26” × 36” | 10°C – 60°C | 40% – 95% | 4 | 400 Ltrs | 14 CFT |
| CIC – 64 | 36” × 36” × 40” | 10°C – 60°C | 40% – 95% | 5 | 850 Ltrs | 30 CFT |
| CIC – 64 | 38” × 38” × 44” | 10°C – 60°C | 40% – 95% | 6 | 1040 Ltrs | 36 CFT |
